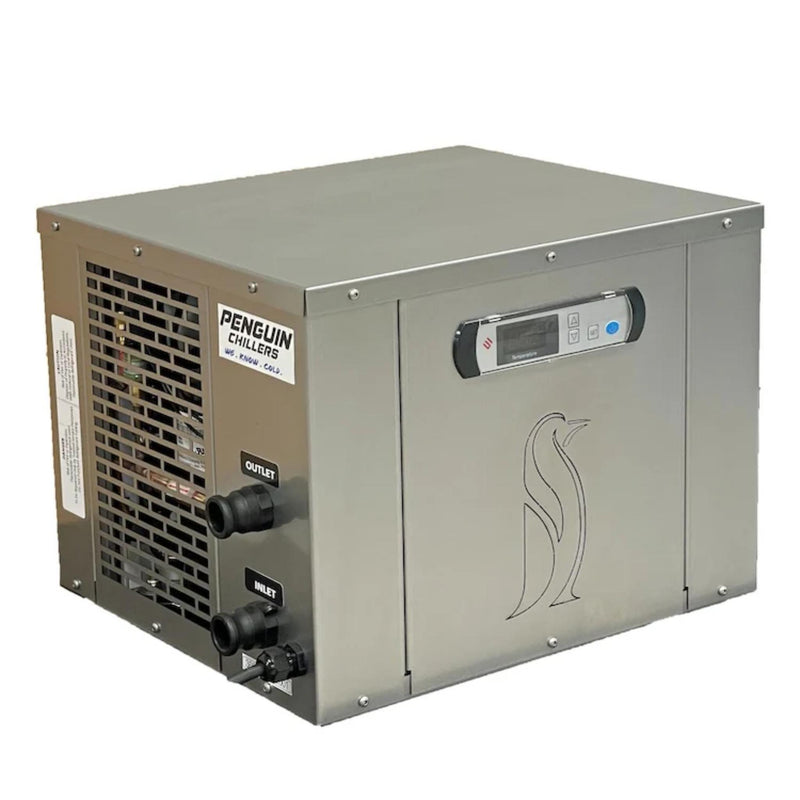

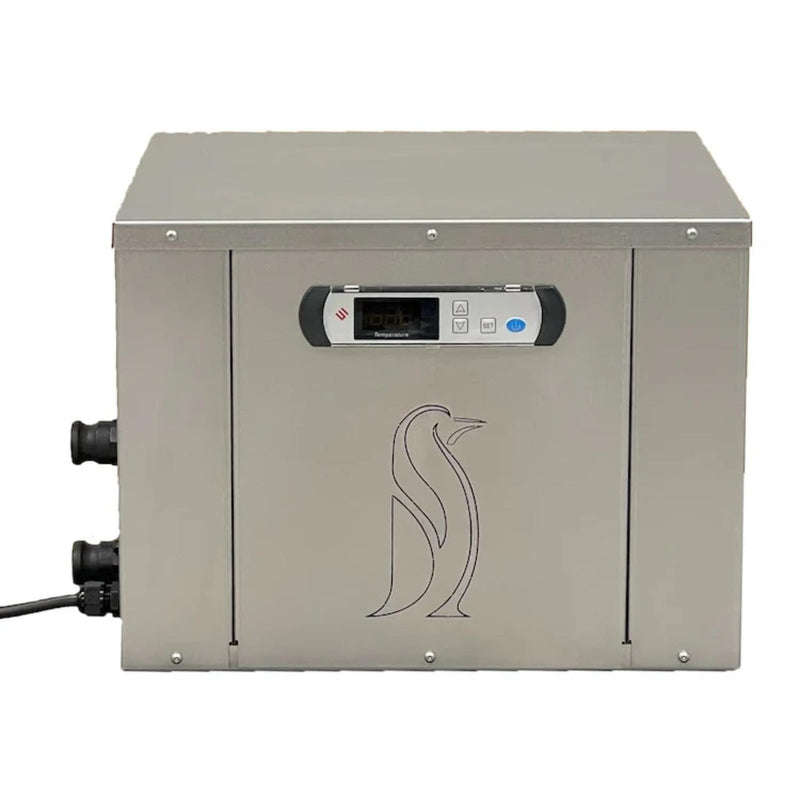

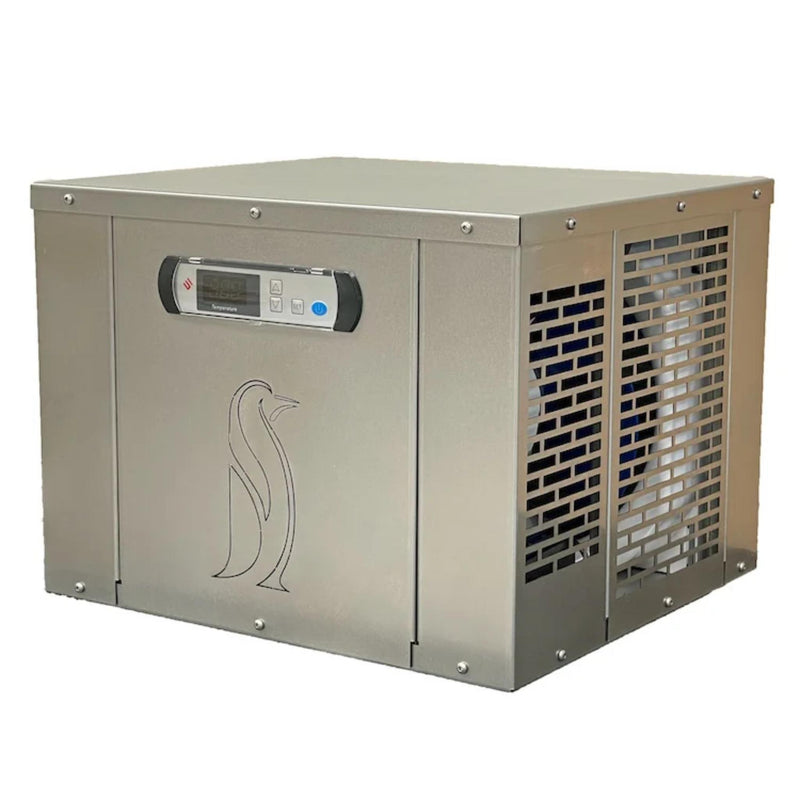

Penguin Chillers Cold Therapy Chiller

The Penguin Chillers Cold Therapy Chiller is purpose-built to simplify cold plunging by delivering consistent, reliable cooling without the need for ice. With a 7,500 BTU/hr cooling capacity, this all-in-one system is designed to maintain cold plunge temperatures efficiently and automatically, making it easier to stay consistent with recovery, performance, and wellness routines.

Featuring a built-in pump, titanium coil heat exchanger, and quick-connect fittings, this unit is engineered for straightforward setup and dependable daily use. Its design reduces maintenance and eliminates the ongoing hassle of ice replenishment, providing a stable cold therapy experience at the push of a button.

Rated for outdoor use in non-freezing conditions, this system is well-suited for residential cold plunge setups, gyms, wellness spaces, and personal recovery stations.

Key Features

• 7,500 BTU/hr cooling capacity for consistent cold plunge performance.
• Built-in pump for simplified setup and operation.
• Titanium coil heat exchanger for durability and corrosion resistance.
• Maintains water temperatures between 37°F–100°F.

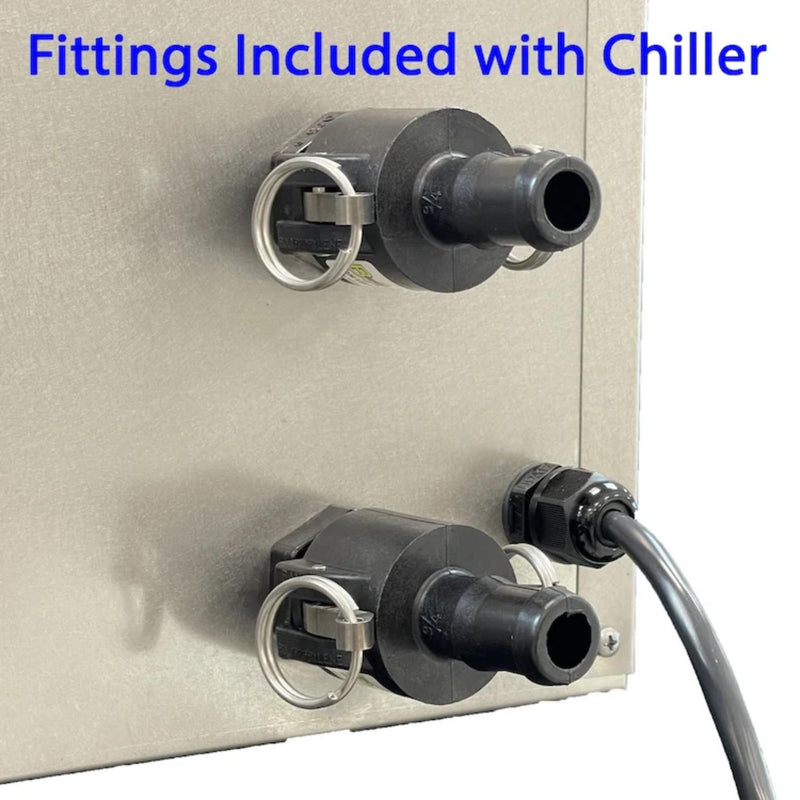

• Quick-connect 3/4" camlock fittings for easy installation.
• Outdoor-rated design (excluding freezing conditions).
• Quiet operation at 56 dBA.
• Compact, integrated system designed for cold therapy use.
• Designed to reduce or eliminate the need for ice.
• Ideal for home cold plunge setups, recovery routines, and wellness applications.

Specifications

Cooling Performance

• Cooling Capacity: 7,500 BTU/hr
• Operating Temperature Range: 37°F–100°F (water)
• Lower temperatures may be possible using fluids with a lower freezing point than water.

Heat Exchanger

• Coil Material: Titanium
• Highly corrosion resistant and suitable for continuous water immersion use.

Electrical

• Voltage: 110–120V
• Phase: Single Phase
• Power Consumption: 450 Watts
• Current Draw: 3.9 Amps

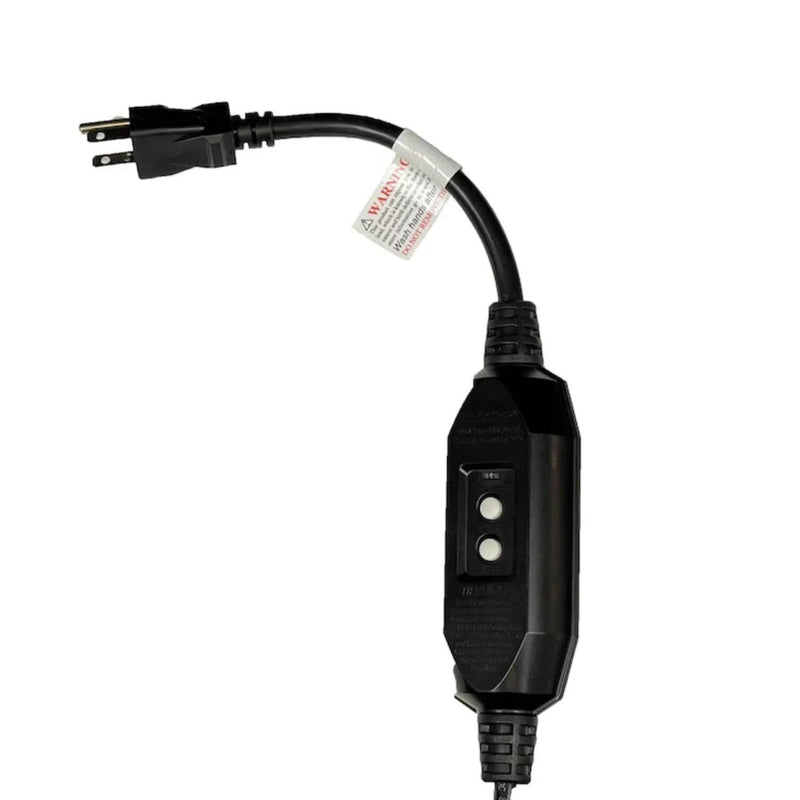

• Power Cord Length: 6 ft

Connections

• Inlet/Outlet: 3/4" Camlock fittings

Refrigerant

• Type: R-32

Dimensions

• Width: 17 in
• Length: 15 in
• Height: 13 in
• Weight: 49 lbs

Performance

• Sound Rating: 56 dBA
• Outdoor Rated: Yes (not for freezing conditions)

Whats Included

Included Components

• Cold Therapy Chiller with built-in pump
• Quick-connect fittings for tubing installation

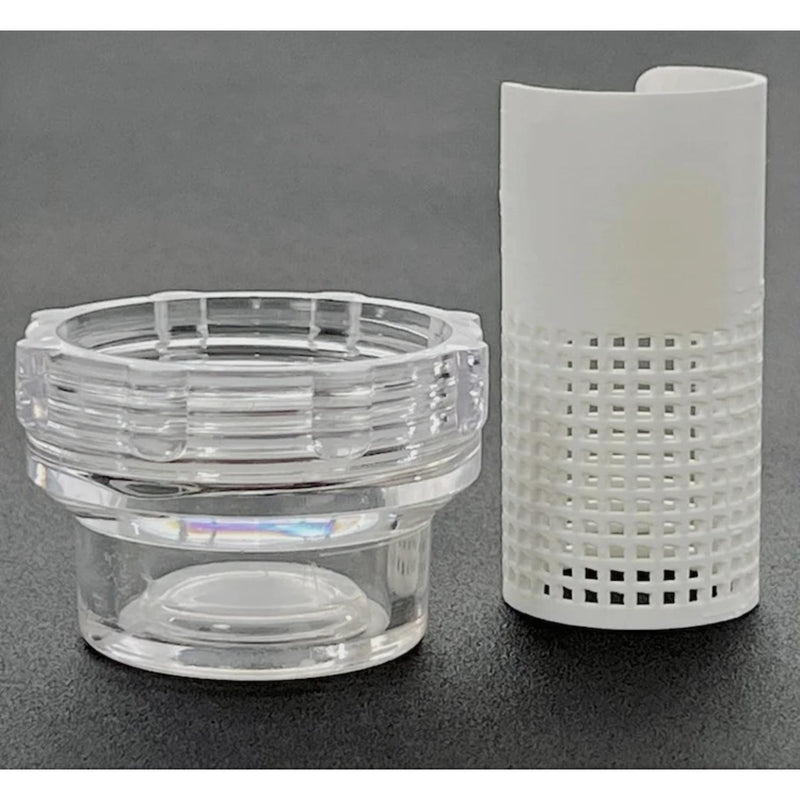

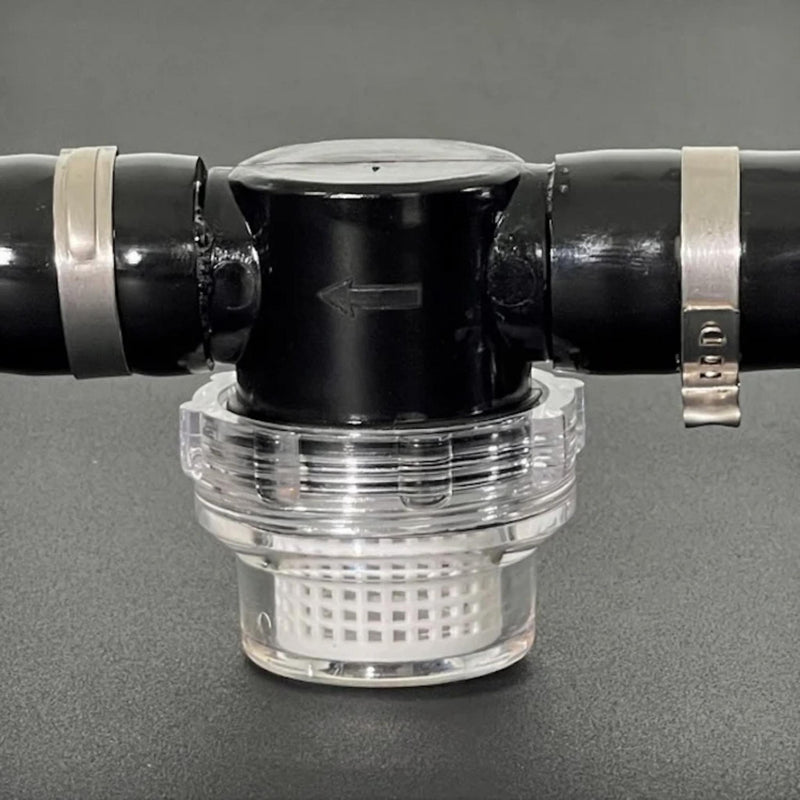

• Inline screen filter for debris protection

Tubing is sold separately unless included with optional install/filter kit.

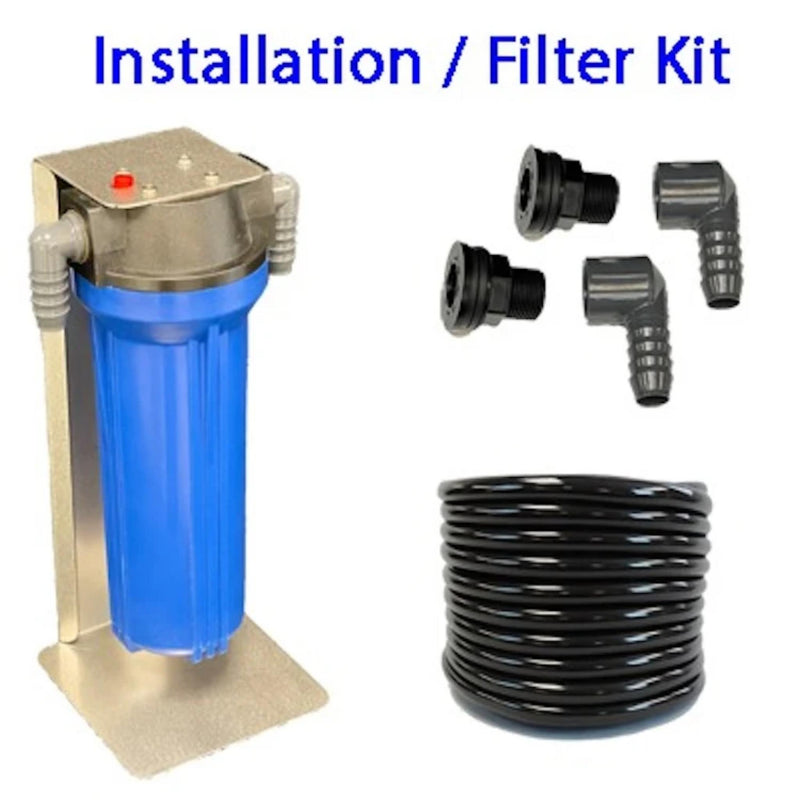

Optional Install / Filter Kit Includes

• Washable and reusable 150-micron filter
• 2 × 6 ft lengths of 3/4" ID black vinyl tubing
• 2 × bulkheads and hose clamps for tub connection
• 2 × barbed elbow fittings for tubing and bulkhead connection

Note: Bulkheads are compatible only with tub walls 1/4" or less.

Manufacturer Guidelines

Setup Notes

• Place system in an area protected from water exposure and condensation damage.
• Performance is affected by ambient temperature, insulation, and sunlight exposure.
• Keep the chiller within 3 ft of the tub drain whenever possible.
• Position chiller at or below the level of the tub base (do not elevate above tub).
• Pump is not self-priming and requires gravity feed for proper operation.
• Do not use filters rated below 50 microns.
• Do not use with ozone venturi systems.
• Not intended for commercial applications.

Outdoor Use

• Suitable for outdoor use in most conditions.
• Must be fully drained and disconnected if temperatures reach freezing or below.

Operating Notes

• Pump should run continuously during operation.
• Keep filters clean for proper performance.
• Timers are not recommended due to increased wear from frequent cycling.

Comparison
