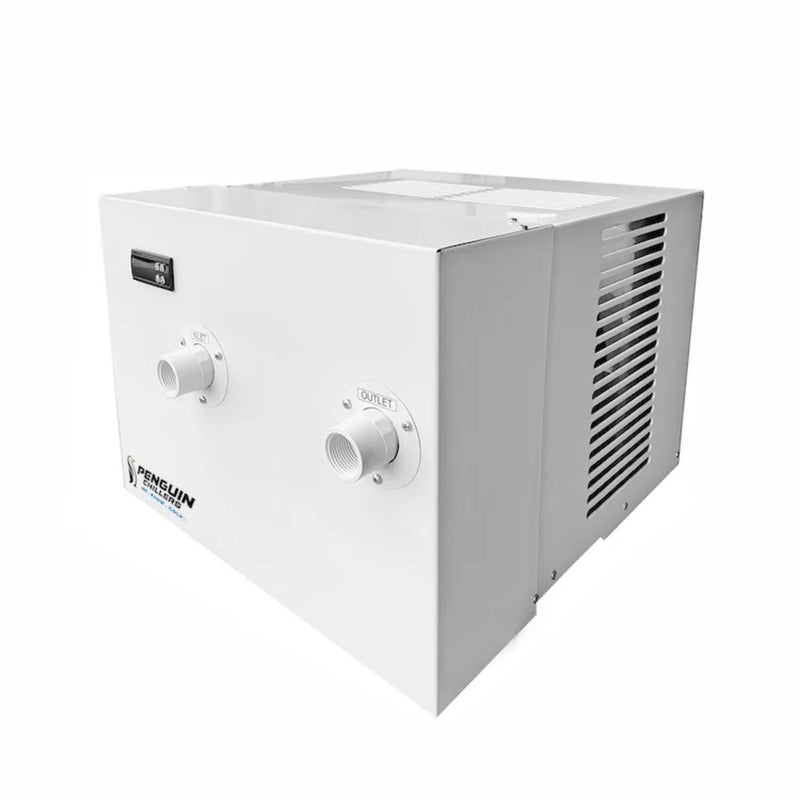

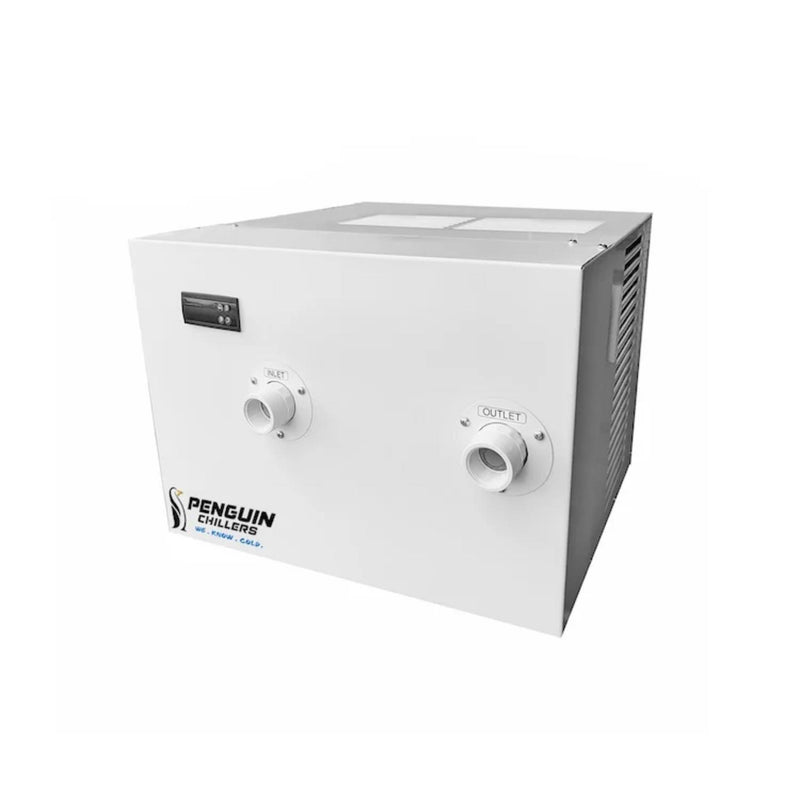

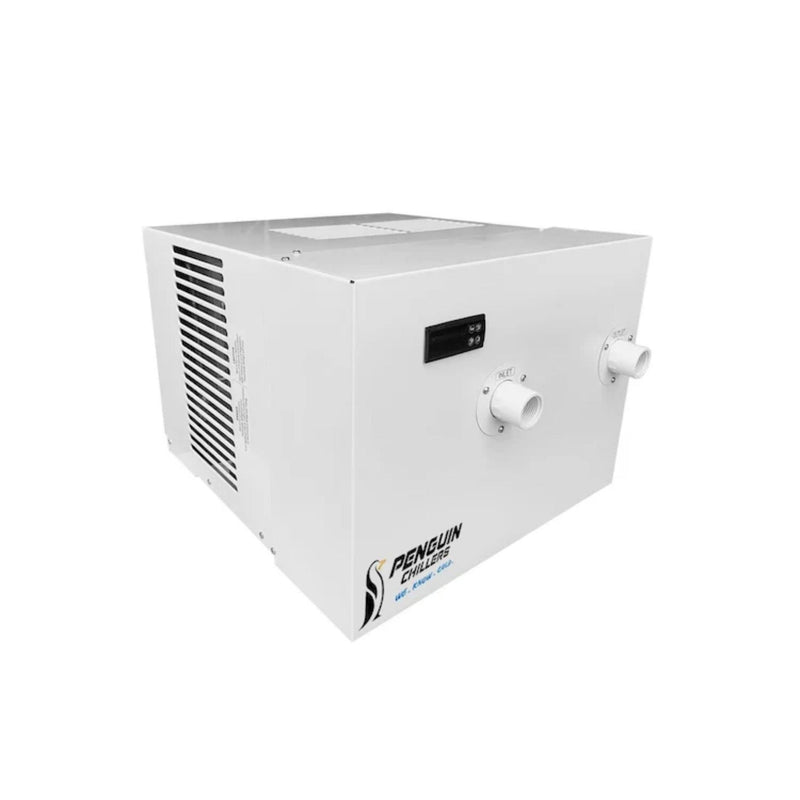

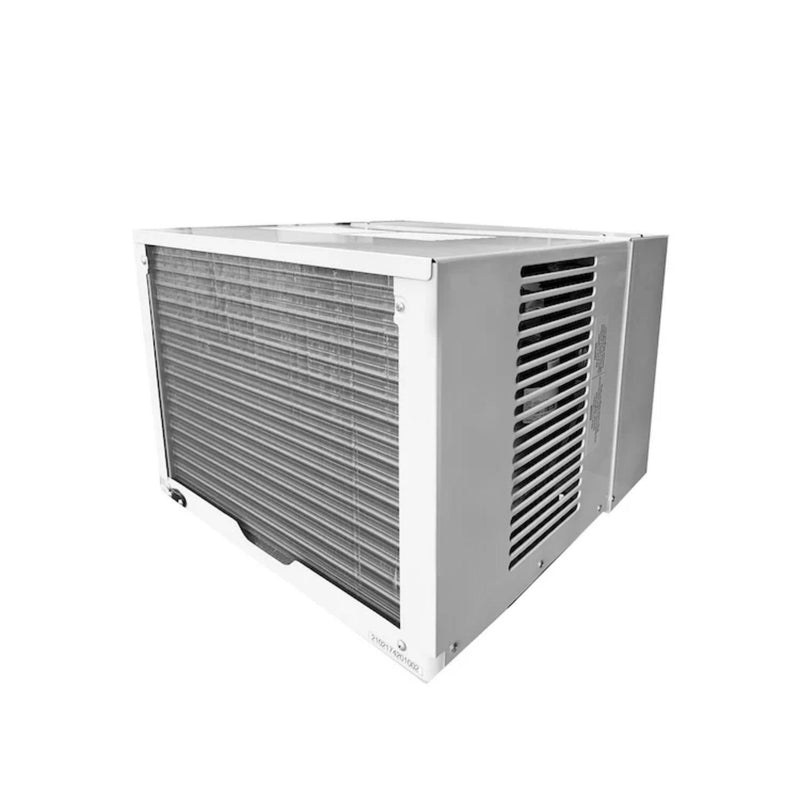

Penguin Chillers 1 HP High Efficiency (HE) Water Chiller

The Penguin Chillers 1 HP High Efficiency (HE) Water Chiller is engineered to provide exceptional cooling performance while maximizing energy efficiency. Delivering an impressive 11,500 BTU/hr cooling capacity, this high-efficiency model offers increased cooling performance over the standard 1 HP unit, making it an excellent choice for demanding applications such as reef aquariums, hydroponic systems, cold plunge and therapy tubs, laboratory equipment, and industrial process cooling.

Designed with reliability and durability in mind, the 1 HP HE Water Chiller is available with two heat exchanger configurations to suit a variety of applications. The PVC Shell with Titanium Coil is ideal for reef tanks and saltwater systems where corrosion resistance is critical, while the 316 Stainless Steel Shell & Coil is designed for higher-pressure freshwater and industrial applications.

Operating between 37°F and 100°F with water, the chiller provides precise temperature control while maintaining a quiet 59 dBA sound level. Its compact footprint, environmentally friendly R-32 refrigerant, and robust construction make it a dependable cooling solution for both commercial and residential installations.

Key Features

• High-efficiency design with 11,500 BTU/hr cooling capacity.
• Enhanced cooling performance compared to the standard 1 HP model.
• Maintains water temperatures between 37°F–100°F.
• Available with two heat exchanger options:
  • PVC Shell & Titanium Coil – Reef tank safe, corrosion resistant, ideal for marine and saltwater applications.
  • 316 Stainless Steel Shell & Coil – Designed for higher pressure freshwater and industrial systems.
• Uses environmentally friendly R-32 refrigerant.
• Quiet operation with a sound rating of only 59 dBA.
• Standard 1" Female NPT inlet and outlet connections.
• Compact, space-saving cabinet design.
• Designed for continuous operation in demanding cooling applications.
• Ideal for reef aquariums, hydroponics, cold plunge systems, laboratories, aquaculture, and industrial process cooling.

Specifications

Cooling Performance

• Cooling Capacity: 11,500 BTU/hr
• Compressor: 1 HP High Efficiency
• Operating Temperature: 37°F–100°F (water)
• Lower temperatures are possible when using fluids with a lower freezing point than water.

Heat Exchanger Options

PVC Shell / Titanium Coil

• Reef tank safe
• Highly corrosion resistant
• Ideal for marine and saltwater systems
• Maximum working pressure: 10 PSI

316 Stainless Steel Shell & Coil

• Suitable for higher pressure applications
• Maximum working pressure: 50 PSI
• Compatible with anodizing baths containing up to 15% sulfuric acid
• Not recommended for saltwater use

Electrical

• Voltage: 110–120V
• Phase: Single Phase
• Power Consumption: 830 Watts
• Current Draw: 7.2 Amps

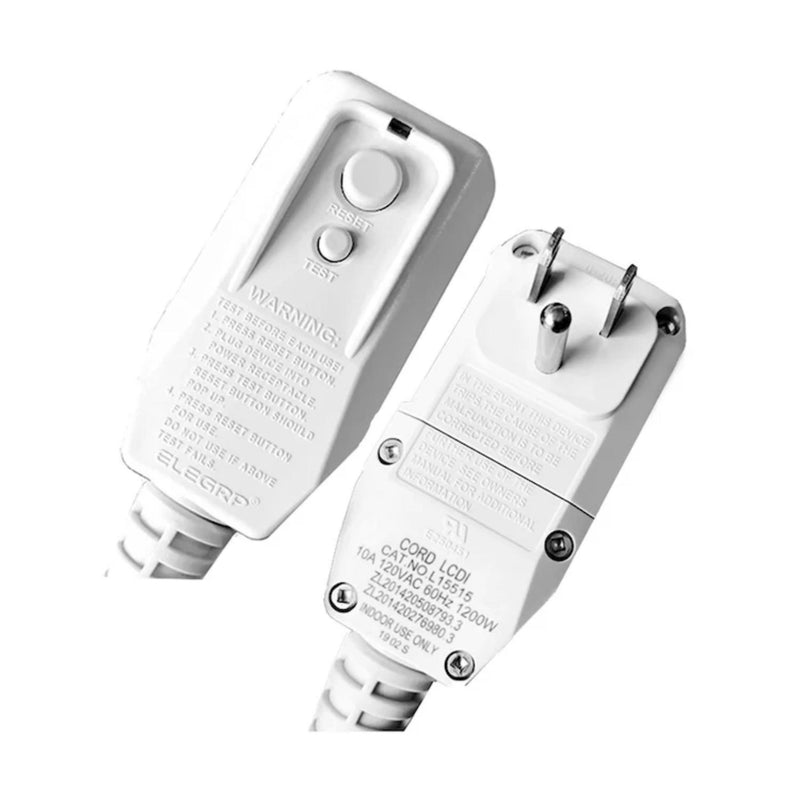

• Power Cord Length: 6 ft

Connections

• Inlet/Outlet: 1" Female NPT

Refrigerant

• Type: R-32

Dimensions

• Width: 19.75 in
• Length: 19.25 in
• Height: 14.25 in
• Weight: 60 lbs (PVC/Titanium) or 66 lbs (316 Stainless Steel)

Recommended Pump

• Recommended: Danner Mag Drive 5.0–18
• Pump selection depends on the overall system configuration.
• Alternative pumps may be used provided they do not exceed 10 PSI / 23 ft maximum head.

Manufacturer Guidelines

• Indoor use only.
• Continuous water flow is required during operation.
• Do not stop water flow without unplugging the chiller first.
• Condensation may occur depending on operating temperature and ambient humidity—plan installation accordingly.
